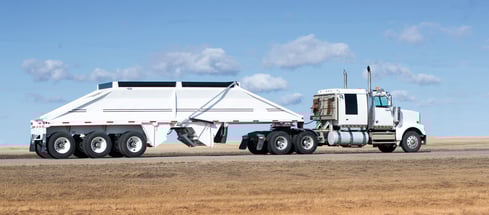

Bottom dump (belly dump) trailers and railroad hopper cars present one of the harshest operating environments for pneumatic valves. Valves must cycle under constant vibration, abrasive particulates, moisture, corrosive materials, and temperature extremes. Any leakage, creep, or failure directly impacts safety, throughput, and operating costs.
VERSA has decades of experience engineering solutions for severe-duty pneumatic control applications. With the V-Series Bottom Dump Valves, VERSA provides the industry’s most durable and precise valve solutions—built for continuous operation where reliability is non-negotiable.
Mobile bottom dump installations are notoriously tough applications that demand top-tier performance. VERSA’s answer is the Brass V-Series, a valve engineered to take on the demands of coal cars, gravel haulers, agricultural spreaders, and mining equipment.
Engineered for Severe Duty Applications
- Forged Brass Construction
The V-Series uses thick-walled forged brass rather than cast or machined bodies. Forged brass provides superior mechanical strength, better grain structure, and resistance to cracking under cyclic loading and impact.
- Full-Flow ½″ NPT Ports
Flow capacity is a critical metric in bottom dump applications. The V-Series Bottom Dump valve maintains ½″ NPT full-flow throughput, enabling rapid unloading of coal, ore, grain, and other bulk materials without bottlenecking.
- Bubble-Tight Sealing
Precision-machined sealing surfaces provide bubble-tight shutoff, which prevents creeping or unintentional flow—an essential feature for safety and material control. Leaks in bottom dump systems aren’t just wasteful—they can be dangerous.
- Air Spring Mechanism
Unlike conventional valves that use metal return springs, the VERSA Bottom Dump valve’s air spring mechanism eliminates mechanical fatigue and failure under vibration. Compressed air provides consistent retraction, improving long-term reliability and reducing the need for manual intervention. Further, with VERSA’s design, the air spring can be manually deactivated so the hand lever can be used to hold the truck clamshell door in any position.
- Dust Proof Protection
Dust, sand, and debris are common in heavy-duty work zones—and even small particles can cause major malfunctions. VERSA’s dust-proof sealing options help maintain peak performance while reducing maintenance cycles and avoiding valve sticking.
Key Advantages of the VERSA V-Series Bottom Dump Valve
The V-Series Bottom Dump valve introduces key upgrades that boost performance, reliability, and adaptability:
- Dual actuation options: Integrated solenoid and manual control in one valve for greater operational flexibility
- High-volume flow: Maintains ½″ NPT full-flow throughput to ensure optimal throughput
- Enhanced dust sealing: Optimized for abrasive, dusty environments
- Forged brass durability: Withstands years of vibration and exposure without cracking or leaking
- Secure seal every time: Air Spring ensures consistent seal integrity under fatigue conditions
These attributes enable operators to confidently run high-duty cycles without premature valve failures.
Operational Advantages in the Field
- Two or Three Position Operation
Operators can achieve both remote 2-position control (fully open/closed) from the cab and local 3-position manual operation, allowing partial opening for metered discharge directly at the hopper.
- Zero Leakage Operation
Bubble-tight sealing means valves stay closed when they’re supposed to—no leaks, no material loss, and no safety issues. - Structural Durability
Forged brass housing and vibration-resistant design prevent cracking, fatigue, and premature failure.
- Lower Maintenance, More Uptime
Air springs replace mechanical components. Dust seals protect sensitive parts from contaminants. The result? Less downtime and fewer service calls. - Decades of Proven Field Performance
Models like the VGK‑4523‑20C‑D012 have become industry benchmarks, running for years with minimal service—a testament to their engineering integrity.
Selection Considerations for Bottom Dump Applications
When selecting a valve for your bottom dump system, consider the following:
- Operating Environment
For applications exposed to dust, sand, or caustic materials, select from our range of dust exclusion options—including dust excluders, vent screens, and solenoid dust nuts/seals—to protect your equipment and maximize uptime.
- Flow Requirements
With standard ½″ NPT ports and full-flow design, you’ll get fast, unrestricted discharge—ideal for high-volume operations.
Performance Backed by Engineering
VERSA Bottom Dump Valves combine forged brass construction, bubble-tight sealing, and advanced air spring technology to deliver reliable performance in severe-duty environments. These engineering-driven features enable safer operations, reduced downtime, and consistent cycle-to-cycle reliability across industries including rail, mining, agriculture, construction, and utilities.
Specifying VERSA means specifying proven, engineered performance designed to meet the operational demands of bottom dump applications.
Why Choose VERSA?
At VERSA, we pride ourselves on developing solutions that not only protect your systems but also enhance overall performance. With decades of experience in fluid control technologies, we’ve become a trusted partner for industries worldwide. Our commitment to quality, innovation, and customer satisfaction sets us apart.
Ready to lean more? Contact us today to discover how VERSA’s Bottom Dump valves can meet your specific needs.
